The VENTUS system transports products to the free-fall plate at high speed via a feed vibrator. This controlled, vibrating feed ensures that the products to be sorted are better distributed, allowing them to be analyzed more accurately and reducing the risk of false rejections. During their free-fall, the products are inspected with the aid of lasers, along one side, or along two opposite sides.
By utilizing multiple lasers with specific wavelengths, the VENTUS enables high-precision sorting based on color, shape, structure and biological characteristics. With laser scanning speeds up to 4,000 scans per second and optical resolution of 0.3 mm, it ranks among the highest-resolution laser sorting systems available.
Applications:
• Nuts
• Dried Fruits
• Frozen Vegetables & Fruits
Advantages:
• Widest double-sided free-fall laser sorter
• Robust, advanced lasers
• Excellent good-to-bad ratio
• Sorting on the basis of color, shape, structure and biological characteristics
• Superior resolution
• Advanced sorting software using AI
• Fast product switching

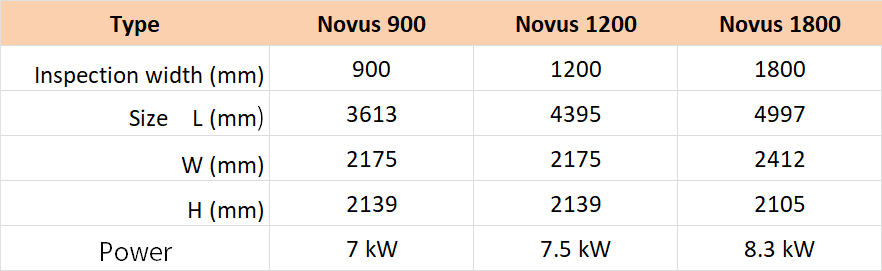

Specifications：
